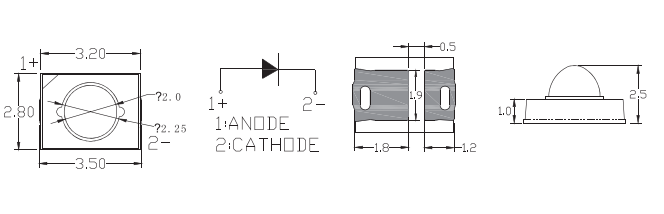

产品尺寸图 Product Size
安防监控类 Security monitoring products
交通信号灯 Traffic lighting
指示 Optical indicator
通用 General application
型号 (Model) | 反向电压(V) (Forward Voltage) | 颜色 (Color) | 色温/ CCT(K) 波长/Wavelength(nm) | 亮度 Luminous Flux | 角度 Angle(°) | 电流 IF (mA) | 电压 Voltage(V) | 工作温度 Working Temperature(℃) | DataSheet 数据表 |
CTLR2835 | 5V | 840-960 | 10-200 | 30/60 | 150 | 1.0-2.0 | -40℃-85℃ | ||
CTLR2835 | 5V | 615-660 | 500-18000 | 30/60 | 150 | 1.8-2.6 | -40℃-85℃ | ||
CTLA2835 | 5V | 600-610 | 500-18000 | 30/60 | 150 | 1.8-2.6 | -40℃-85℃ | ||
CTLY2835 | 5V | 585-595 | 500-18000 | 30/60 | 150 | 1.8-2.6 | -40℃-85℃ | ||
CTLG2835 | 5V | 560-575 | 10-4000 | 30/60 | 150 | 2.8-3.6 | -40℃-85℃ | ||
CTLB2835 | 5V | 460-475 | 500-18000 | 30/60 | 150 | 2.8-3.6 | -40℃-85℃ | ||
CTLW2835 | 5V | 2000-100000 | 1000-30000 | 30/60 | 150 | 2.8-3.6 | -40℃-85℃ |
